Draft Protocol developed by FracTracker Alliance and Carnegie Mellon University’s CREATE Lab, modified via pilot counts with PennEnvironment
For more information please contact info@fractracker.org
Draft Last Updated: September 2, 2015

The purpose of this project is to document how many crude oil (1267) and liquefied petroleum gas (1075) train cars go through your area. These types of cars can be identified with their HAZMAT placards:

1267 hazmat placarded cars (crude oil):

1075 hazmat cars (liquefied petroleum gas):

Site Selection

Select a set of sites that cover possible train paths through the area of concern with as many of the following characteristics as possible:

• Public place off of the road
• Good lighting at night
• Safe at night
• Location where trains move more slowly, if possible
• Avoid more than 2 tracks in parallel.  Parallel tracks create the possibility of missing a train that’s obscured by another train.

Train Counting Equipment

• 1 clipboard, several pens
• 30 blank train reports per session
• Two to three people
• Phone with camera to record time for each train, and to take photographs and videos where possible (optional)
• Radar gun (optional)
• Video camera (optional)
• A large umbrella or tent that can cover both the observers and the camera, when needed.
• Chairs and other amenities to make sure observers are comfortable

How to Count Trains

• There should be at least two, if not three people counting trains at all times. For each train that passes, fill out one Train Report Form. Align yourself perpendicular to the tracks. Capture photos and videos of the trains as you see fit.
• Before a train arrives, fill out a new report form with all of the train counters’ names, a cell phone number or email address for one of you, and the date.
• Counter 1 is responsible for counting cars marked with the 1267 HAZMAT placard. Counter 2 counts the cars with the 1075 placards. Counter 3 captures the train’s speed with the radar gun, and counts the total number of cars on each train – including the engine and caboose.
• Once you hear a train coming, enter the start time on the sheet. Prepare the radar gun to capture the train’s speed as it goes by. While the train passes, count in your head how many cars pass of the type to which you have been assigned. Afterward, mark how many of each type of car the counters saw.
• After the train passes, enter the final number of each type of HAZMAT cars on the train and the total number of cars. Also, write down the train’s speed, direction (if known), operator (company), and any additional notes about the session (such as placards that you could not distinguish clearly).
• Turn in these tally sheets to your project coordinator. We would also appreciate it if you were to send information about your train counting results and experience to FracTracker Alliance: info@fractracker.org.

Videotaping Best Practices

If you are using a video camera, here are some suggestions for improving the recording process.

• Even during broad daylight it might be difficult to clearly videotape the trains if they are moving quickly. Try to find a counting location where the trains move slowly (e.g. 25 mph)
• Test out the iPhone’s new slow motion camera feature
• Set the video camera up at least 30 frames per second. 60 frames/second is better.
• Don’t zoom, as this results in a dark aperture. Try finding a site and setting up close enough that you can get a good shot (but far enough away for safety purposes)

Train Report Form

Be sure to include information about what might be missing or uncertain — if there were two trains at once, or if you missed some cars for any reason. If you missed or couldn’t discern cars, try to include some insight on whether the situation could be improved in the future by better lighting or site selection, or if the train’s fast speed made it hard to keep up, etc. Remember to send your results to info@fractracker.org.

The Society for American Archaeology (SAA) has estimated there to be over 195,000 cultural, historic, and archaeological sites in just nine of the most active shale formations located in the U.S. to date (see SAA report). The FracTracker Alliance has also mapped data from the National Registry of Historic Places (see below), which includes approximately 70,000 listed properties—fewer than the number of archaeological sites in the State of New Mexico alone. There is, therefore, much to be gained by all stakeholders in generating a model that will help companies manage risk effectively and protect these sites with consistent, thoughtful approaches.

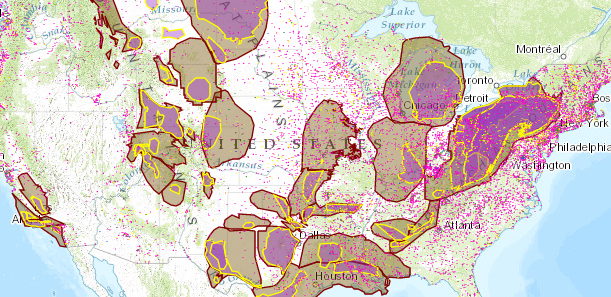

Digitized items on the National Register of Historic Places (NRHP), and shale plays and basins, where unconventional drilling operations most often occur. Please note that not all of the items on the NRHP have been digitized. To access legend, layer descriptions, and other map controls, please click the expanding arrows icon in the top-right corner of the map.
