User Guide

  • The Allegheny Lease Mapping Project

    Exploring Patterns of Oil and Gas Agreements in Allegheny County, PA

A User’s Guide

This user guide is intended to help you navigate the various features found on our Allegheny Lease Mapping System. The interface we’ve developed offers a variety of functions that allow you to filter parcels shown on the map and see information for individual parcels. Other features include toggles for different basemaps, well permits, and drilled wells. Below we describe those features in more detail.

For more information on how we determined what data shows on the maps, see the Data Scraping & Mapping Methods page.

1
2
3
4
5
6
7
8

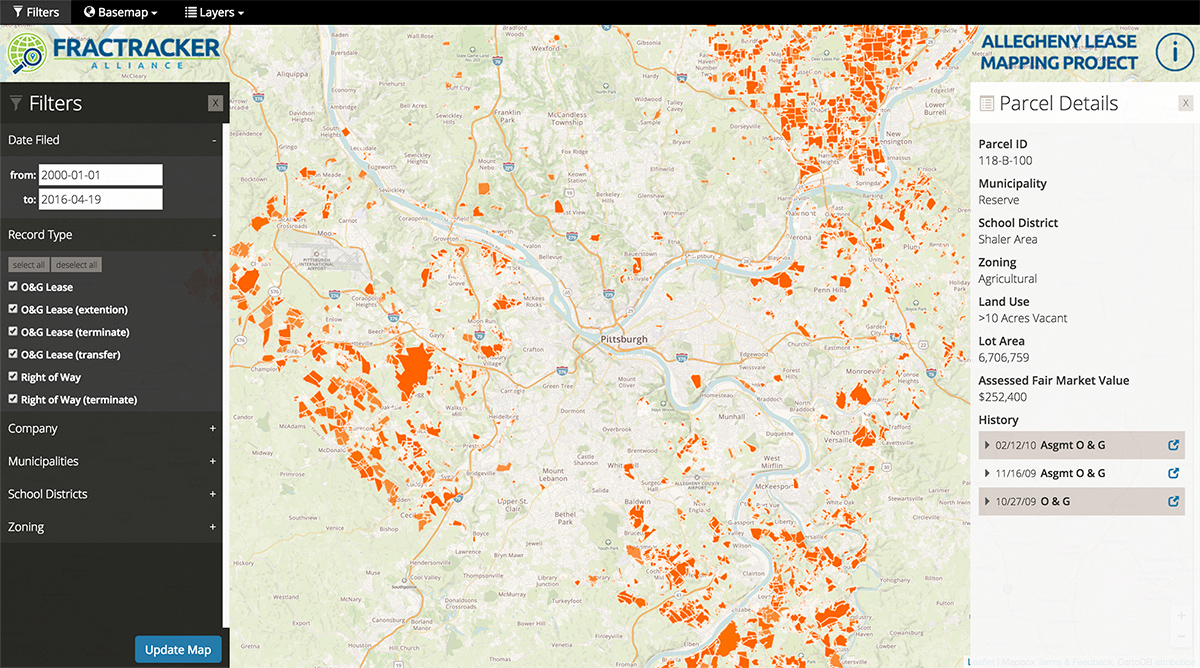

1

Toggles change basemaps and layers shown on the map

2

Filters refine which parcels are shown on the map

3

Filters can be customized by selecting different paramaters

4

Update the map to view parcels associated with the filters

5

An individual parcel can be clicked to see more info

6

Details for the selected parcel

7

History of transactions for the selected parcel

8

Link to the original transaction record

Toggling Features

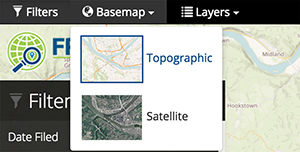

A number of features can be used to help provide some context to these mapped oil and gas agreements. Two basemaps are available:

  1. “Topographic” is useful for for seeing parcels relative to streets and the basic layout of the county;
  2. Switching to “satellite” provides a more detailed view of the landscape.

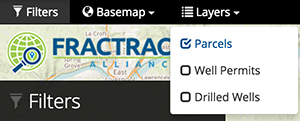

The other toggling feature is layers. In addition to the default “parcels” map layer, which shows properties in the database associated with some kind of oil and gas transaction, other layers show drilled wells and permits in the county. Also on the layers tab is the option to turn off the map legend.

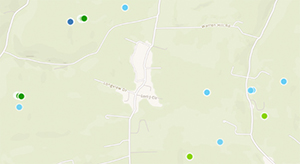

Permits are shaded in blue and drilled wells in orange. In both cases darker shading is used to denote unconventional oil and gas wells. For a more detailed map of wells and permits, see our Pennsylvania Shale Viewer page.

Filtering Results

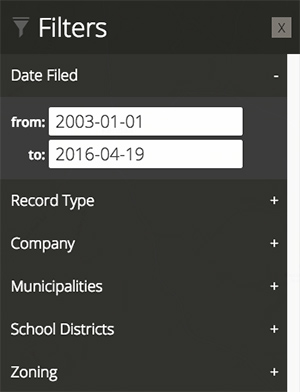

The purpose of the Allegheny Lease Mapping Project was to obtain and map all parcels found in the county to have some kind of oil and gas related transaction. By default, all parcels in the project database are shown when the map is launched. However, there are many reasons why one would want to view a subset of these parcels. A number of filters are provided to narrow down what shows on the map: date range, record type, company, operator, municipalities, school districts, and zoning. Note that the earliest record in the dataset is from 2003.

Within each filter category users can select individual options. A “select all” and “deselect all” button are available to make the process convenient. A few details on these filters:

First, filter by company is limited to those with a substantial number of parcels in the database (over 50).Remaining companies are grouped under the “other” option. It is important to note that this filter does not show which companies own property leases at the present moment (or at a given date). The company filter only selects records in the database where the “grantee” matches the selected companies within the selected date range.

Second, these filter windows do not function independent of one another. For instance, if you were to select only “Churchill” from the list of municipalities and only “City of Pittsburgh” from the list of school districts, no parcels will appear on the map. This is because no parcels exist in Churchill that are also in the City of Pittsburgh school district.

Once you have set up the filters accordingly, clicking the “Update Map” button redraws the map using a subset of data matching the filters.

Viewing Parcel Details

Each orange polygon on the map corresponds to a unique parcel of land. Darker orange shading denotes parcels with multiple oil and gas records in the database.

Clicking on a parcel brings up a Parcel Details sidebar. This window contains all of the information that exists in our database for the particular parcel including:

  • Parcel ID (also known as a Block/Lot)
  • Municipality
  • School District
  • Zoning
  • Land Use (a zoning sub-category)
  • Lot Area
  • Its Assessed Fair Market Value

Also in this window is the history of transactions. This list contains all of the oil and gas related records we were able to obtain for the parcel. For more information on what these transactions mean, see the Understanding Oil & Gas Agreements page. The blue link to the right of each record links to the original document on the Allegheny County’s Department of Real Estate Office website.

Viewing Wells & Permits Details

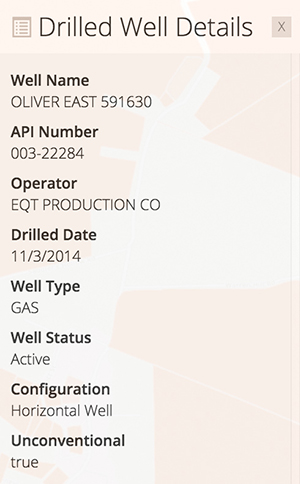

Similar to the Parcel Details sidebar, clicking on a drilled well or permit brings up a window with more details including:

  • Well Name
  • API Number (a unique identifier used by the state)
  • Operator
  • Permit Date (the date of permit issue) or Drilled Date (also known as SPUD)
  • Well Type (gas or oil)
  • Configuration (vertical or horizontal well)
  • Unconventional (true or false)

We hope you have found this user guide helpful. If you feel like you are ready, explore the map. However, if after reviewing this user guide you still have questions about how to operate the Allegheny County Lease Map, just ask us: info@fractracker.org.
